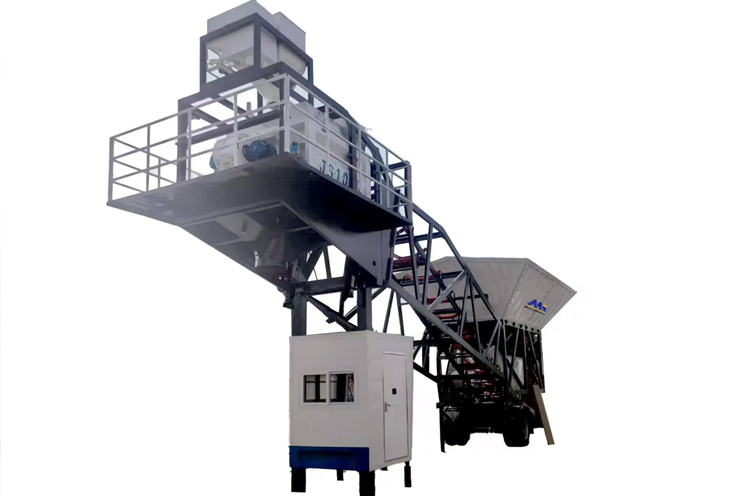

YHZS60 Series Mobile Concrete Batching Plant
- Input Size:--
- Capacity:45–60 m³/h
Production Capacity:
45–60 m³/h
Mixer Type:
Twin-shaft compulsory concrete mixer
Aggregate Feeding System:
2×3.5 m³
product
Production Capacity:
45–60 m³/h
Mixer Type:
Twin-shaft compulsory concrete mixer
Aggregate Feeding System:
2×3.5 m³

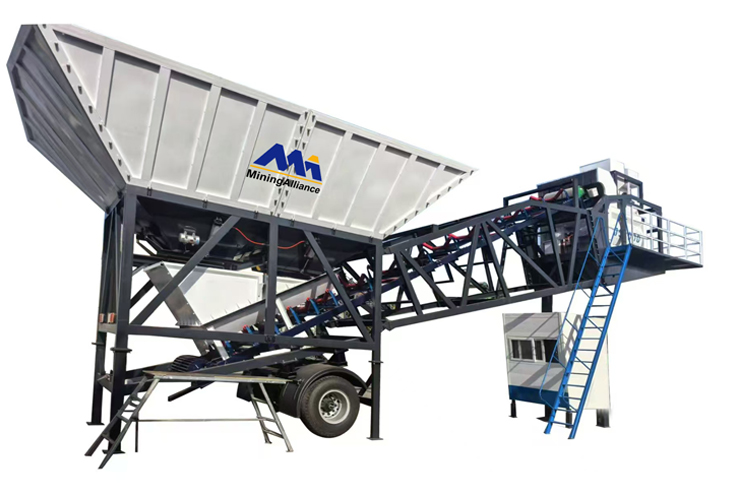

• Integrated trailer-mounted design: towable by tractor or truck for easy relocation.
• No need for foundation: ready for production immediately after setup, saving construction time.
• Compact footprint: only requires 50–100 m², suitable for narrow job sites.
• Priced at just 1/3 of a stationary batching plant — perfect for projects with limited budgets.
• Low maintenance cost: simple drum design with low failure rate.
• Optional dual power source (diesel/electric) for different site conditions.
• Manual or semi-automatic control, no complex training required.
• Drum mixing ensures uniform blending and stable concrete quality.
• Compatible with small loaders or manual feeding for flexible onsite operation.
• No power supply? A diesel-powered version is available.
• Harsh working environment? Steel structure with anti-corrosion treatment for long-term outdoor use.
• Small project scale? 10–30 m³/h output meets daily construction needs.
• Low noise (<75 dB), minimal disturbance to surroundings. • No complex powder conveying system, reducing dust pollution. • Wastewater can naturally settle, meeting environmental standards for small-scale sites.
Manual loading of aggregate and cement bags → Mixing in the drum mixer → Adding water and mixing for 5–8 minutes → Tilt discharge into a handcart → On-site pouring → Simple water rinse
✔ High Mobility:
The plant can be easily transported by trailer, allowing rapid site transfer without complex installation procedures.
✔ Economical and Practical:
Low investment cost, ideal for small-scale projects with limited budgets.
✔ Simple Operation:
Manual or semi-automatic control system is available, requiring no professional training.
✔ Strong Adaptability:
Optional diesel engine ensures normal operation in environments without stable power supply.
✔ Eco-Friendly and Energy-Saving:
Low noise and energy consumption, fully compliant with environmental standards for small construction projects.
| Model | ZJYG60 |
| Theoretical Output | 60 m³/h |
| Concrete Mixer | JZM1500 |
| Aggregate Batching Unit | 5 m³ * 2 / 3 bins |
| Feeding Height | 3200 mm |
| Cement Weighing Accuracy | ±1% |
| Water Weighing Accuracy | ±1% |
| Additive Weighing Accuracy | ±1% |
| Chassis Dimensions (mm) | 8410×2000×780 |
| Overall Dimensions (mm) | 11100×2000×780 |
