Crushing Equipment
Material: Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.

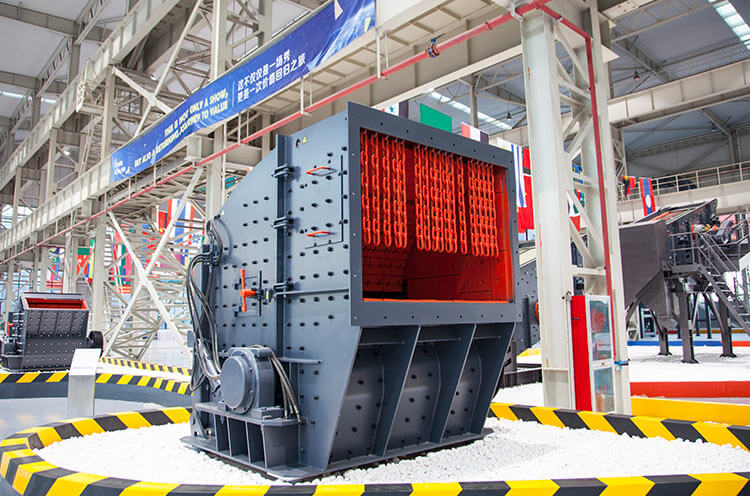

PFW Impact Crusher (Also known as “European Impact Crusher”) is mainly used in metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industries, as well as in the expressway construction, water conservancy projects, aggregate and machine-made sand fields, etc.
The use of automated hydraulic jacking device makes checks and maintenance easier and reduces labor costs.
C6X Jaw Crusher boasts more reasonable moment of inertia and greater crushing strokes through optimization of the equipment structure, crushing cavity and movable jaw's motion trail and speed. It is able to achieve higher crushing efficiency at the same power consumption and thus offer customers a larger rate of return on investment.
In order to ensure stable and efficient production during crushing hard materials, C6X Jaw Crusher is equipped with such core rotating components as high-quality casting movable jaw body, large-eccentric heavy-duty forged eccentric shaft, cast flywheel with a high moment of inertia and high-strength integrated cast steel bearing box, as well as strong power with reasonable speed configurations.
High-quality raw materials and reliable design can provide sufficient equipment strength and remarkable durability of C6X Jaw Crusher during super-hard material crushing and thus reduce the maintenance costs.
The C6X Jaw Crusher adopts centralized grease lubrication. Manual or automatic grease lubrication system can be configured as needed, which can reduce the difficulty in maintenance and simultaneously guarantee cleanness and neatness at the work site.
The C6X Jaw Crusher uses a double-wedge regulating discharge port with the mechanical or hydraulic regulation available as needed, so it can be regulated more simply and efficiently than the traditional underboarding discharge ports.
There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.
Our businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.
Firstly, the motor drives belt and pulley to make the movable jaw move back and forth, up and down around the eccentric shaft. When the movable jaw pushes the movable jaw plate towards the fixed jaw plate, materials get crushed. When movable jaw and plate move backwards under the action of the eccentric shaft and spring, the materials crushed before would be discharged from the port under the jaw plate. As the motor works continuously, the movable jaw can crush or discharge materials periodically, so that volume production can be achieved.
Model | Rotor size (mm) | Feed opening (mm) | Max. Feed size (mm) | capacity (t/h) | Power (kW) | weight (t) | Overall dimension (mm) |
PFW1214Ⅲ | Ф1150×1400 | 570×1430 | 250 | 90-170 | 132(175) | 16 | 2550×2310×2100 |
PFW1214Ⅱ | Ф1150×1400 | 1100x1430 | 500 | 130-200 | 132(175) | 18.5 | 2400x2310x2550 |
PFW1315Ⅲ | Ф1300×1500 | 625×1530 | 300 | 180-270 | 200(270) | 20 | 2960×2570×2380 |
PFW1315Ⅱ | Ф1300×1500 | 1200x1530 | 600 | 180-320 | 200(270) | 21.5 | 2700x2570x2800 |
PFW1318Ⅲ | Ф1300×1800 | 625×1830 | 300 | 220-300 | 250(350) | 23 | 2960×2870×2380 |
PFW1318Ⅱ | Ф1300×1800 | 1200x1830 | 700 | 240-400 | 250(350) | 25.5 | 2700x2870x2800 |
PFW1415Ⅲ | Ф1400×1500 | 800×1530 | 350 | 280-350 | 250(350) | 22.5 | 3120x2650x2660 |
PFW1415Ⅱ | Ф1400×1500 | 1300x1530 | 700 | 300-480 | 250(350) | 25 | 2900x2700x3000 |
NOTE: The above capacity figures are based on the general throughput of medium hardness materials. Depending on different feeding, size, rock types and water content, the actual performance may be different.
