Material: Granite, quartz, basalt, pebble, limestone, dolomite, etc.

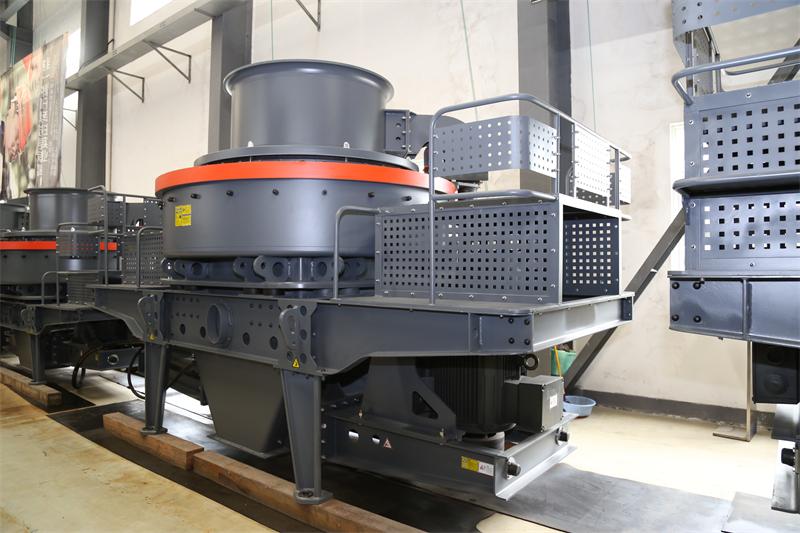

On the basis of introducing German technologies on sand-making machines and upgrading the VSI Sand Maker, MiningAlliance develops and researches a new generation of sand-making machine— VSI5X Sand Maker. VSI5X Sand Maker has multiple independent property rights and integrates 3 kinds of crushing modes. Now, VSI5X Sand Maker is the core equipment in machine-made sand industry.
Product Features:
Lower maintenance costs, longer service life of vulnerable parts, quicker adjustments
Optimized Impeller Enhances Efficiency By 30% And Reduces Wear By 40%
Through systematic mechanical analysis and verification, MiningAlliance optimized the structures of impeller and vulnerable parts. Compared with the traditional sand makers, VSI5X Sand Maker obviously increases the material throughput and ratio of crushing, and enhances the working efficiency by 30%-60%. The wear costs of vulnerable parts reduce by more than 40%.
Hydraulic Device to Open the Cover Automatically Reduces Maintenance Costs
In consideration of the maintenance and part replacement during the production of the sand maker, MiningAlliance introduced semi-automatic hydraulic system. By only pressing a button, users can open the top cover of the machine to carry out following operations. So, this system greatly saves labor costs and enhances the service efficiency.
Split-Type Structure, Extended Service Life of Spare Parts
Based on the actual situations of production, we found that some spare parts like the periphery guard board and impact block always wear terribly at some specific points. So, to avoid this phenomenon, MiningAlliance adopts the split-type structure when designing quick-wear parts, which not only greatly extends service life of quick-wear parts, but also reduces their using costs a lot.
Brand New Feed Mode
In consideration that customers may have two production demands (i.e. sand making and shaping) which require the switch between central feeding and fall feeding, MiningAlliance made a brand new improved design on the material distributing tray so that users can easily switch the feed mode, shortening downtime for adjustments.
Digitalized Processing, Higher Precision
There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.
Sufficient Supply of Spare Parts, Worry-free Operation
MiningAlliance, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.
Working Principle
VSI5X Vertical-shaft Impact Crusher (also known as "Sand Maker") has two feed modes – "feed at center" and "feed at center & sides". As for the former mode "feed at center", materials at the feed hopper firstly pass through the central hole into the high-speed spinning rotor. In the rotor, materials are fully accelerated and thrown outwards from the launching port to collide with a part of materials that freely fall after rebound. Next, materials hit the surrounding vortex material liner (or the impact block) inside the vortex chamber together. In the chamber, materials are bounced to the top of crushing chamber firstly and then change their direction by moving downwards to form a material curtain with materials emitted from the runner of impeller. Finally, finished products are discharged from the bottom discharge opening. As for the latter mode "feed at center & sides", firstly, materials at the feed hopper pass through the circular hole. Then, materials are divided into two parts by the distributing tray. One part of materials enter the high-speed rotating impeller while the other part of materials fall from all sides of the tray. Materials in the impeller would be accelerated rapidly and thrown outwards at a high speed to collide with materials falling from all sides of the tray. Next, all materials hit the surrounding vortex material liner (or the impact block) inside the vortex chamber together. In the chamber, materials are bounced to the top of crushing chamber firstly and then change their direction by moving downwards to form a material curtain with materials emitted from the runner of impeller. Finally, finished products are discharged from the bottom discharge opening.
NOTE: The above capacity figures are based on the general throughput of medium hardness materials. Depending on different feeding, size, rock types and water content, the actual performance maybe different.
