Mobile Crusher

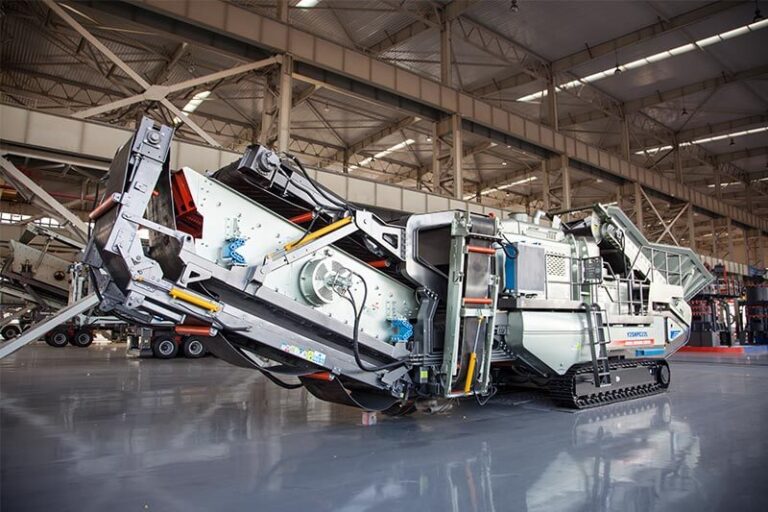

Tracked Mobile Crusher

As crushing and screening equipment, Crawler type Mobile Crushing Plant with pedrail can move on the production site automatically. This patented machine is possess of mature idea and accurate system, which can be adapted to mountainous region, wet land, etc. landforms.

Product Applications:

Mining, metallurgy, construction, highway, railway, and water conservancy, etc.

GET A FREE QUOTE CONTACT US ONLINE

Performance/Advantages

Excellent Performance of Power System

It is adopts Cummins diesel engine, low oil consumption, low noise. And we can equip a low-temperature preheating device so that the equipment is able to star at -25℃ low
temperature environment.

Ship-shaped Steel Chassis

It is of high intensity, low on ground pressure etc. And it is easy to be transported on different terrains like mountain and marsh.

High-torque Moving Motor

It is of strong driving force and perfect performance, thus providing reliable power source to the running system.

Servo-system

It is of easy operation and precise control, and can realize Continuously Variable Transmission.

Efficient and Mature Crushing and Screening Equipment

The crushing and screening plant uses our company's advanced products so that ensure the good quality of complete set of equipment.

Both Electricity and Diesel Oil Power Device with Intelligent Dual Power Switch

The machine can be operated by local electric power. Thus the operating cost will be cut down and the emission of CO2 and nitrogen oxides is highly reduced. When there is electricity breakdown and under voltage, the diesel oil power device will be started to work to guarantee the continuous operation of the machine.

Product Specifications

Crawler Type Mobile Jaw/Impact Crusher

Standard ModelFeeding equipmentCrushing equipmentTransportation Dimension(mm)Weight (ton)
ModelModel Disassembly L×W×H(Approximately)
YG935E69LTSW0936PE600×90012450X2800X380040
YG1139EW760LTSW1139PEW76013460X3000X380050
YG1345HJ110LTSW1345HJ11014212X3000X380050
YG1345EW860LTSW1345PEW86014827X3000X380063
YG1139FW1214IILTSW1139PFW1214II13913X3000X375050
YG1345FW1315IILTSW1345PFW1315II14340X3000X380063

Crawler Type Cone Crusher Plant

Standard ModelFeeding equipmentCrushing equipmentTransportationWeight (ton)
Dimension(mm)(Approximately)
ModelModel Disassembly   L×W×H
YHST16LGLD-10*4.5HST160H112000x2800x349335
YHST25LGLD-12*4.8HST25014766x3000x370050
YHPT300LGLD-12*4.8HPT30014800x3000x370050

Crawler Type Mobile Screening Plant

Standard ModelFeeding equipmentCrushing equipmentTransportationWeight (ton)
Dimension(mm)(Approximately)
ModelModel Disassembly   L×W×H
Y2S1860ALGLD-14/5.25 2YZS186017800X3200X370036.5
Y3S1860BLGLD-12/33YZS186017000X3300X360038
Y3S1848BLGLD-12/3.83YZS184817000X3300X360036
Y2S1848BLGLD-12/3.82YZS184817000X3300X350034
