Crushing Equipment

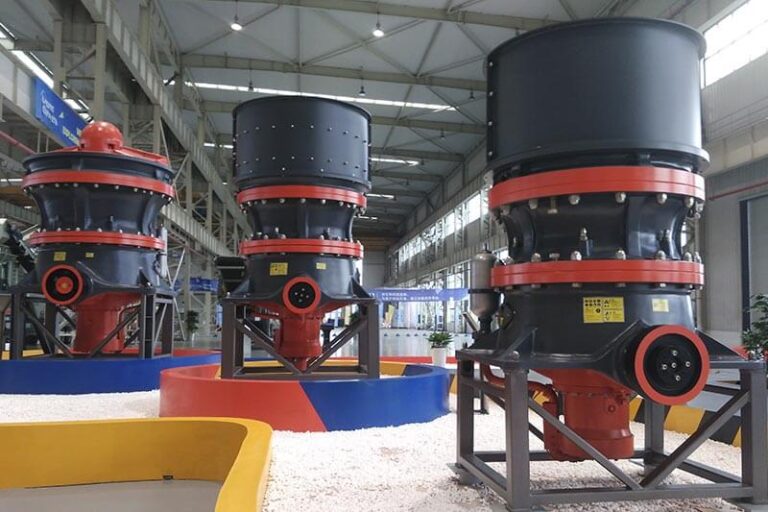

HST Single Cylinder Hydraulic Cone Crusher

  • Input Size: 0-370mm
  • Capacity: 45-2130TPH

Material: Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

HST Single Cylinder Hydraulic Cone Crusher is a new high-efficiency cone crusher independently researched, developed and designed by MiningAlliance through summarizing over twenty years of experience and widely absorbing advanced American and German technologies about cone crushers. This cone crusher integrates mechanical, hydraulic, electrical, automation and intelligent control technologies, and possesses advanced cone crusher technologies in the world.

Product Features:

Bigger capacity, safer and more intelligent, higher efficiency

GET A FREE QUOTE CONTACT US ONLINE

Performance/Advantages

High Production Efficiency, Strong Holding Capacity

HST Single-cylinder Hydraulic Cone Crusher achieves higher production efficiency and better product quality by matching suitable crushing cavity, eccentric distance and movement parameters. Combined with optimized strength and high-quality components, HST Hydraulic Cone Crusher has bigger holding capacity and crushing ratio as well as stronger throughput capability.

Fully Automatic Control Covering Whole Production Process

The fully automatic control system equipped on the HST Cone Crusher can provide manual control, constant discharge opening control, constant power control and many other operation modes for users to select. It can continuously monitor the internal actual load of the crusher to optimize the use ratio of the crusher and allow it to play its best performance at all times.

Easier for Maintenance, More Effective for Cost Savings

HST Hydraulic Cone Crusher has a simple structure. Almost all checks and maintenances can be done by only taking down the upper rack. The structure can not only make maintenances and checks get easier, but also save maintenance costs a lot. Besides, HST Single-cylinder Hydraulic Cone Crusher is compact on its structure, occupying small floor area, which further cuts expenditures on the foundation building.

Multiple Cavity Types Meet Various Production Needs

HST Hydraulic Cone Crusher has several kinds of standard crushing cavities which can fully meet the secondary, tertiary and even quaternary crushing needs after primary coarse crushing.

Digitalized Processing, Higher Precision

There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.

Sufficient Supply of Spare Parts, Worry-free Operation

MiningAlliance, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.

Working Principle

When a HST Single Cylinder Hydraulic Cone Crusher works, driven by the motor, the transmission shaft rotates under the action of belt pulley and triangular belt. Next, the transmission shaft drives the eccentric sleeve to make it rotate around the axis. Meanwhile, the eccentric sleeve forces the movable cone to do pendular movement. This movement makes the movable cone and fixed cone sometimes close to, sometimes far away from the rolling wall. Materials are continuously shocked, squeezed and crushed in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.

Specification

ModelCavityFeeding opening size(mm)Minimum discharge size(mm)Capacity(t/h)Max. Installed power(kw)
HST100S12402285-17090
S22001970-130
H11351045-115
H265835-80
H335427-60
HST160S136025120-345160
S230022105-305
S32351990-275
H11851366-210
H2901065-165
H350648-105
HST250S145035255-605250
S240029215-515
S330025190-490
H121516110-395
H211013115-340
H370890-255
HST315S156041335-1050315
S250038305-895
H127516170-665
H213516190-505
H36513205-320
HST450S156054500-1300450
S246551450-1200
HST560H130022430-1515560
H215519380-1375
H38010270-775
HST750H137025460-2130750
H219522525-1605
H38510350-885

NOTE: The above capacity figures are based on the general throughput of medium hardness materials. Depending on different feeding, size, rock types and water content, the actual performance may be different.
